You have done the research, bought the van, and packed just about everything you own into it. Then someone mentions tow ball mass and aggregate trailer mass and suddenly the whole thing feels way more complicated than it should be.
Here is the good news: it is not. Once someone walks you through it clearly, caravan weights make a lot of sense. Whether you are towing a caravan for the first time or heading off on your next big road trip with a camper trailer in tow, understanding your towing weights is one of the most important things you can do for safe towing. This guide covers what the numbers on your compliance plate mean, why tow ball weight trips so many people up, and how to make sure your rig is legal and balanced before you head off.
The Numbers on Your Compliance Plate
Every caravan has a compliance plate bolted to its chassis or drawbar. Easy to walk straight past, but that little metal plate holds the most important caravan weight information about your van and is the starting point for legal compliance on the road. Get familiar with what is on it before anything else.
Caravan Tare Weight
Tare weight is your caravan's empty weight as it left the factory floor, with no water in the tanks, no gas bottles loaded, and no gear anywhere. It is the baseline everything else builds from. Watch out for aftermarket accessories added since purchase, such as a second battery, bike racks, a toolbox, or extra solar panels, as these are not counted in the tare weight on your compliance plate but are already eating into your payload before you have thrown a single bag inside.
Aggregate Trailer Mass (ATM)
The ATM is the maximum your caravan can legally weigh when fully loaded and ready to roll. The caravan manufacturer sets it, it is printed on the compliance plate, and going over it puts you on the wrong side of the law and potentially voids your insurance. The gap between your tare weight and ATM is your payload. Four hundred kilograms sounds like plenty until you fill the water tanks and start loading the storage bays. It goes faster than you think.
Gross Trailer Mass (GTM)
The GTM is the weight your caravan's axles push down onto the road when hitched and fully loaded. Because some of the total weight transfers through the tow ball to your tow vehicle, the GTM always sits lower than the ATM. Exceed it and you are overloading the axles and braking system, which causes premature wear and problems somewhere you really do not want them.
Gross Vehicle Mass (GVM)
The GVM belongs to your tow vehicle, not your caravan. It is the maximum your car or 4WD is allowed to weigh with everything on board: passengers, luggage, fuel, and the downward force from the caravan pressing on the tow ball. Your caravan being under its ATM means nothing if the added weight pushes your tow vehicle over its GVM. Worth knowing that the maximum towing capacity figure advertised in a brochure often only applies under very specific conditions using specialist tow bars and particular vehicle configurations. Real-world limits for most setups are more conservative than the number on the sticker.
Gross Combination Mass (GCM)
The GCM is the combined weight of your tow vehicle and caravan together with everything and everyone inside both. It is the ceiling for your entire rig. A vehicle might be rated to tow 3,500kg with a GVM of 3,200kg, but if the GCM is 6,000kg you cannot run both at their maximums at the same time. Knowing your GCM tells you exactly how much weight you have to work with across the whole setup.
Tow Ball Weight: The Number Most People Get Wrong
Tow ball weight, sometimes called tow ball mass, ball weight, or tow ball download, is the downward force your caravan applies to the tow ball when the two are hitched together. It is the most misunderstood measurement in caravan towing, and getting it wrong in either direction causes real problems on the road.
Why It Matters
Too little tow ball weight and the rear of the caravan starts to lift, creating instability and opening the door to trailer sway at highway speeds. Not a situation you want to find yourself in, especially in windy conditions or when a truck passes at speed. Too much and the back of your tow vehicle sags under the load, which reduces steering response at the front, hurts braking performance, and can push your rear axle over its weight limit.
The safe range sits between 8 and 15 percent of the caravan's total loaded weight. On a 2,400kg van that is roughly 190 to 360kg. Consistently sitting outside that range is where handling and safety start to suffer.
What Affects It
Tow ball weight is not fixed. It shifts with where you load things inside the van. Heavy items towards the front over the axle push ball weight up. Weight towards the rear brings it down. Filling the water tanks shifts it. Adding a full gas bottle changes it. Fitting bike racks to the rear changes it. Any time you pack differently from the last trip, it is worth rechecking before you leave.
How to Check It
The easiest option is a portable tow ball weight scale. Pop it under the jockey wheel, lower the wheel onto it, and read the downward force at the hitch. Simple, affordable, and takes the guesswork out of one of the most critical variables in your setup.

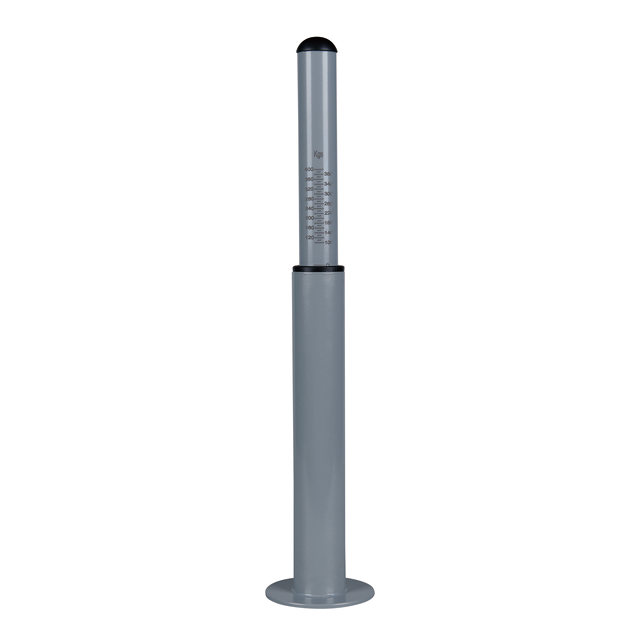

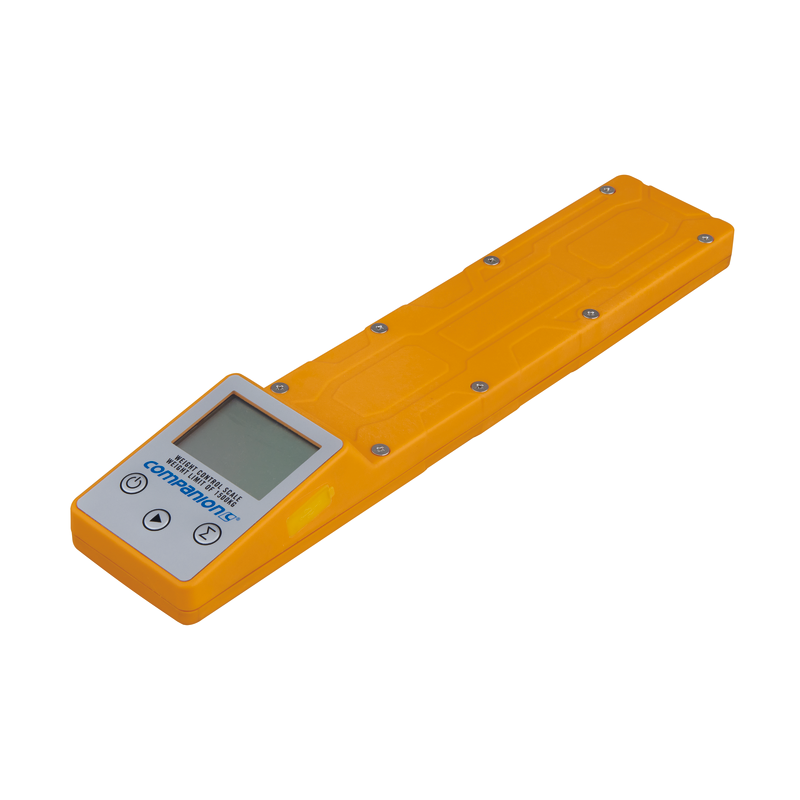

OZtrail Pick: The Caravan Tow Ball Weight Scale is built exactly for this, giving you a solid reading with the van fully packed and hitched as it will be for travel. For a complete axle and combination weight check without leaving the driveway, the Digital Weight Control Scale covers your whole rig in one tool.
Loading Your Caravan: Weight Distribution Done Right
Staying under your ATM is necessary but not the whole job. Where that weight sits inside the caravan directly affects how the van handles, how the brakes perform, and how the tow vehicle feels on the road.
The rule is simple: heavy things go low and close to the axle. Pack heavy gear such as tools, batteries, and full water containers as low as possible in the bays closest to the axle. Load evenly from side to side and keep lighter items like bedding and clothing further back. Stack things high and you raise the centre of gravity, increasing sway risk in windy conditions or during sudden steering inputs.
Bike racks, spare wheels, and anything mounted at the rear all shift weight backward and reduce tow ball download. Factor that extra weight into your numbers and recheck tow ball weight once everything is fitted. A well-loaded van tows better, brakes better, uses fuel more efficiently, and causes less premature wear on tyres and suspension.
How to Weigh a Caravan
Knowing the numbers on your compliance plate is a great start. Knowing what the van actually weighs when packed and ready to go is what keeps you legal and safe. The two are rarely the same once aftermarket accessories and extra gear start adding up.
Before you weigh anything, write down the limits you are working within. Tare weight, ATM, and GTM from the caravan's compliance plate. GVM, maximum braked towing limit, maximum tow ball mass, and GCM from your vehicle's plate or owner's manual. Those are the boundaries everything needs to stay inside.
For the most accurate full picture, a public weighbridge is the way to go. Most towns have one at a council depot, transport facility, or larger service station. Drive on with the rig fully hitched and loaded and you will get combined weight plus individual axle weights. Worth doing at the start of each season or before any major trip.

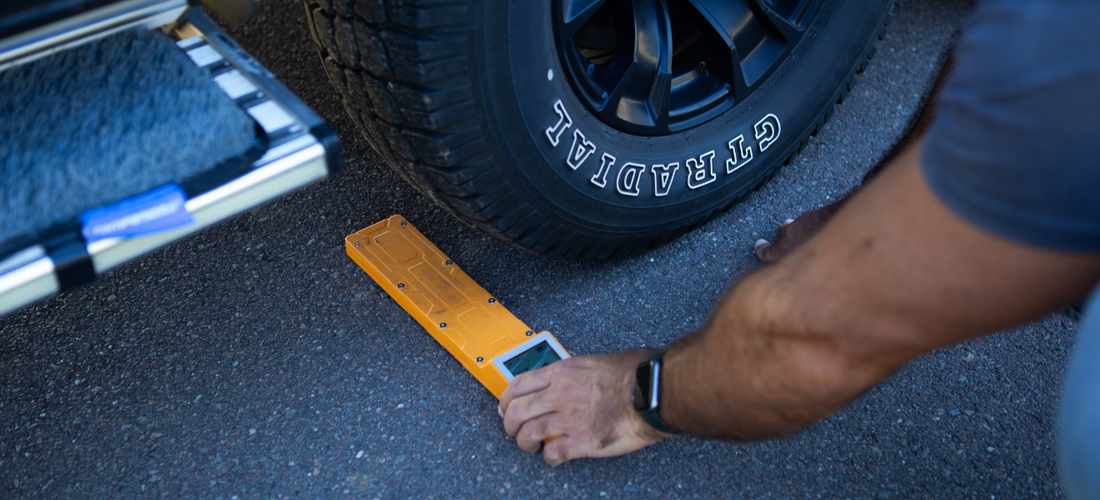

OZtrail Pick: If you want a more convenient alternative, the Digital Weight Control Scale lets you calculate your caravan weight so you can spot uneven loading before you leave.
For regular tow ball checks at home, a portable scale is quick and accurate enough for every trip. Always do it with the van packed and hitched as it will actually travel, not sitting empty on the driveway.
Complete Your Caravan Setup
Get your caravan towing weights sorted once and it becomes second nature. Know your compliance plate numbers, check tow ball weight before every trip, and load with distribution in mind. That is the whole picture, and it means better fuel efficiency, less wear on your gear, legal compliance on every trip, and more time enjoying wherever you end up.
